Portable Diesel Air Compressor



  • RANGE
  • PDS 175S
    to PDS 830S

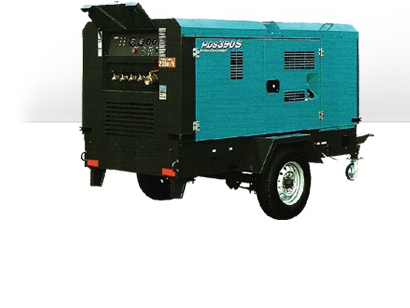

  • PDS-390S

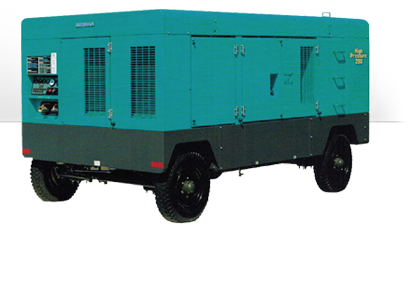

  • PDS-830S


  • RANGE
  • CPS-185
    to CPS-830

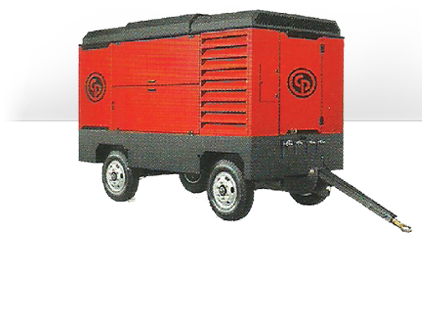

  • CPS-350

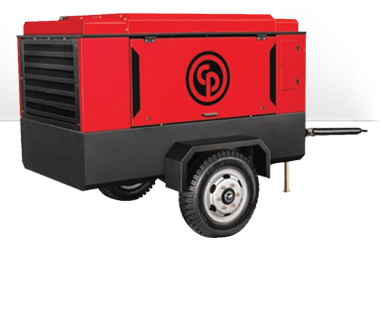

  • CPS-830

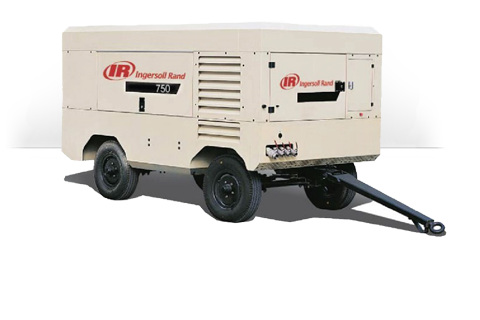

  • 750CFM

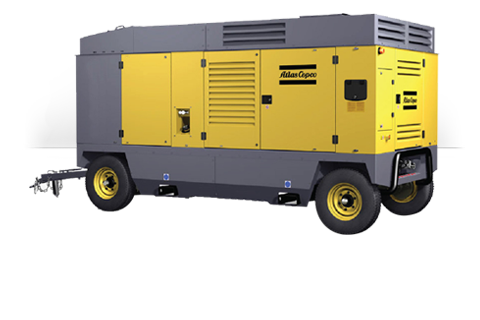

  • 1020CFM
GENERAL SPECIFICATION TABLE – AIR COMPRESSOR
MODEL 175CFM 390CFM 750CFM 830CFM 1020CFM
Type Rotary Screw, Single-stage, Oil-cooled
Rate Operating Pressure
kg/cm2 (PSIG)(kPA)		 7 (100) 7.1 (102) 10.3 (150) 10.3 (150) 10.3 (150)
Fuel Tank Capacity Liter (US Gal) 90 (23.8) 182 (48.1) 462 (122) 400 (105.7) 538 (142.1)
Dimension
Length mm(Inch) 1970 (77.6) 2600 (102.4) 3451 (134) 4000 (157.5) 4900 (192.9)
Width mm(Inch) 950 (77.6) 1300 (51.2) 1950 (76.8) 1900 (74.8) 2140 (84.25)
Height mm(Inch) 1080 (42.5) 1400 (55.1) 1925 (75.8) 2150 (84.6) 2500 (98.43)
Weight (Dry) kg(lb) 740 (1631) 1635 (3605) 3175 (7000) 4100 (9039) 5165 (11,387)
Weight (Wet) kg(lb) 840 (1852) 1850 (4079) 3570 (7870) 4600 (10,141) 5810 (12,809)
Note: The figure shown above are approximation only and subject to change without prior notice.
