Diesel Generators 10kVA to 1250kVA

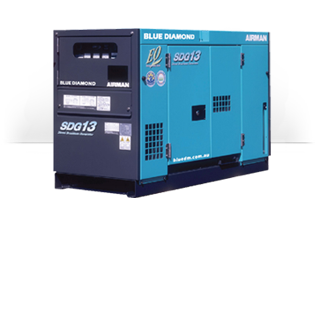

  • SDG13S

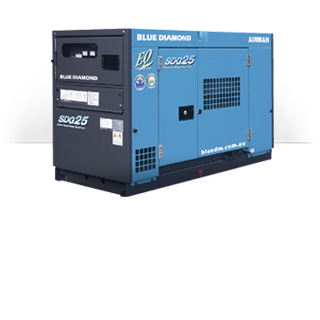

  • SDG25S

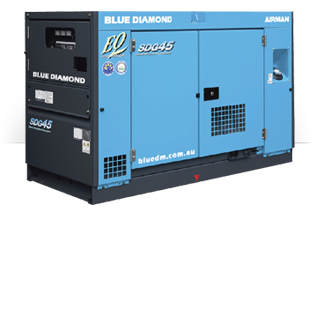

  • SDG45S

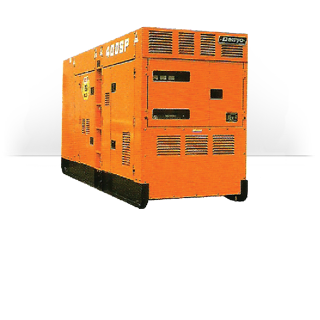

  • DCA-400SPM

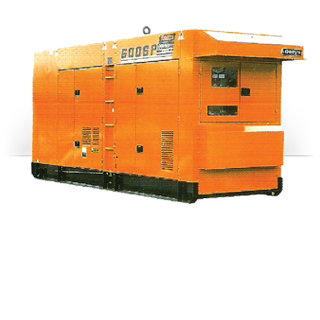

  • DCA-600SPK

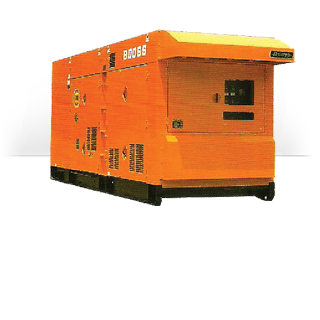

  • DCA-800SSA-M
GENERAL SPECIFICATION TABLE – SOUND PROOF GENERATOR
MODEL DENYO / AIRMAN / MILLER / TAIYO
Capacity KVA 50Hz 5 12.5 25 37 50 75 100 125 175 200 250 300 400 500 750 1000 1250
Rated KVA 50Hz 240V 240V 3 Phase, 4 Wire System 240/415V (50Hz/1500RPM, 60Hz/1800RPM)
Power Factor 0.8 (Lagging)
Excitation Brushless, Rotating Exciter (with AVR)
Insulation Class F
Fuel Consumption ℓ/h 2.7 2.5 5 6.5 8.9 12.8 16.3 21.2 27.1 34.7 40.3 47 64 103 110 157 300
Fuel Tank (liter) 10 70 70 100 125 200 250 250 250 250 500 500 500 500 500 600
Weight (kg) 27 660 880 1190 1400 1700 2200 2700 3200 3700 4100 5300 5600 8000 1120 13000 25000

Note: The figure shown above are approximation only and subject to change without prior notice. Fuel consumption is based on operation at 75% load.
